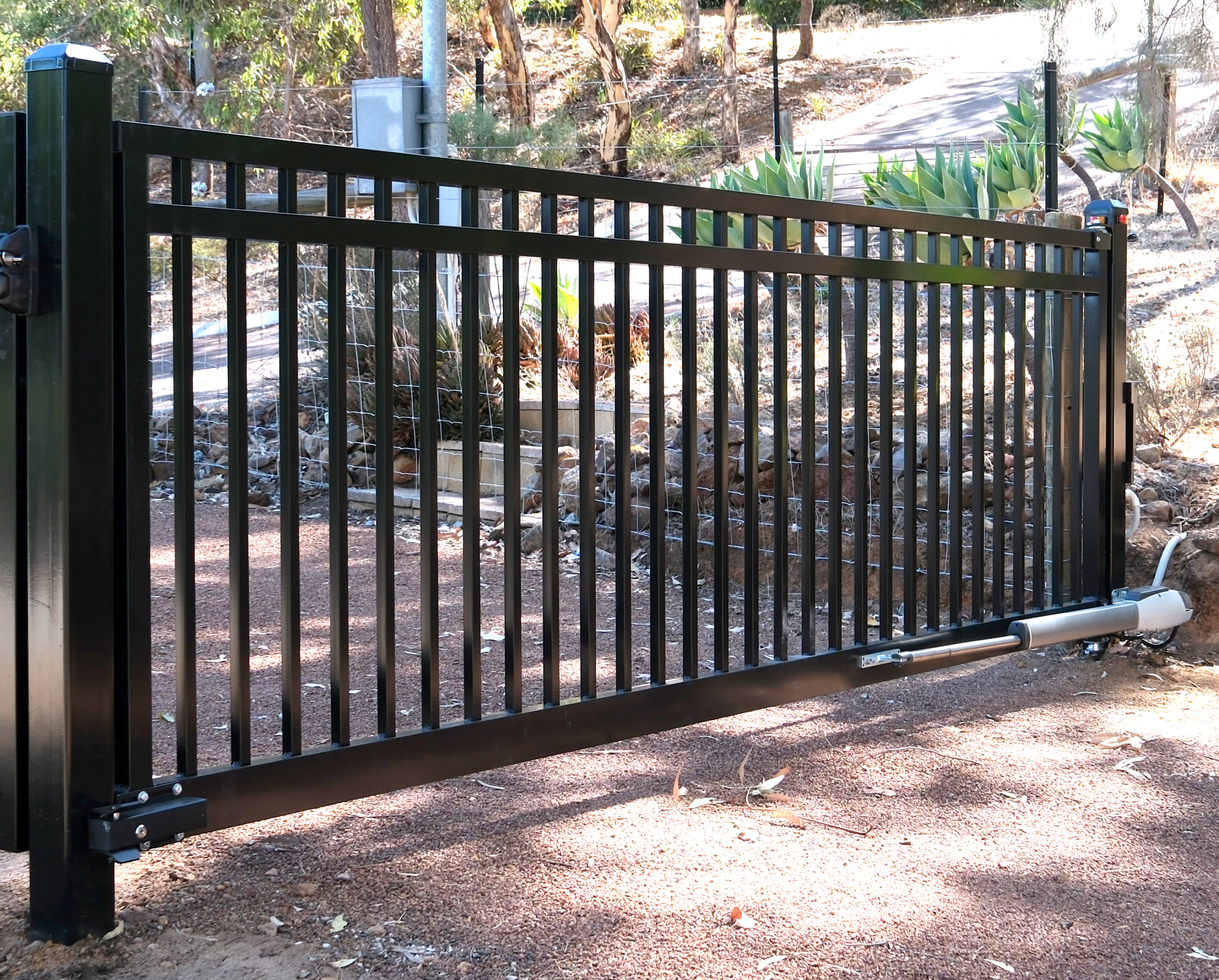

Single Swing Gate Package 3.6m W x 1.2m H

• Our double top rail aluminium swing gates are available from our Perth warehouse ready to install.
• Made from aluminium powder coated black.
• Images examples only.

• 1 x Aluminium Double Top Rail Gate 1.2m H x 3.6m W Black
• 2 x Posts 100x100x3.0mm x 2m powder coated black with caps
• 2 x Bolt On Ball Bearing Hinges with Plate - Left or Right Hand can be supplied (DCW02 OR DCW03)
• 1 x TMT Mastiff 400L Single Swing Motor Kit with 2 remotes
• 1 x Auto Gate Lock 12/24VDC Black w/2 Keys (AUTO LOCK 12/24V)
• 1 x Bolt Down Gate Stop w/Rubber Bumper (MX04A)
• Images examples only.

Gate

• Dimensions: 1200mm H x 3600mm W
• Side Rails: 50x50x2.0mm
• Bottom Rail: 100x50x3.0mm
• Pickets: 25x25x1.6mm
• Picket Spacing: 100mm
• Material: Aluminium powder coated black

Mastiff 400L Actuator Arm

• Max Gate Length: 4.5m
• Max Gate Weight: 450kg
• Power Supply: 110V/230Vac (50-60Hz)
• Motor Power Supply: 24Vdc
• Gear Type: Worm Gear
• Peak Thrust: 4500N
• Normal Thrust: 4000N
• Operation Stroke: 450mm
• Piston Extension: 25.5mm/sec
• Opening Time: <14sec
• Duty Cycle: 20%
• Protection Level: IP44
• Operating Temperature: -20 / +50°C
• Absorbed Current: 5.5A for maximum 10sec
• Absorbed Power: 144W
• Manual Release: Key
• Enclosure Dimensions: 1030mm x 123mm x 124mm

CB19 Control Box Kit

• Main Power Supply: 230Vac/110Vac, 50Hz/60Hz
• Receiver Board: 433.92MHz, 200 transmitter memory
• Installation: Wall mounted vertically
• Operating Temperature: -20°C - +50°C
• Dimension: 275x195x102mm

Auto Gate Lock

• Power Supply: 12/24v
• Lock Dimensions: 21.5cm x 5cm x 5cm
• Backing Plate Dimensions: 14cm x 10cm
