Ranch Style Sliding Gate Package

• Our ranch style aluminium sliding gates are available from our Perth warehouse ready to install.
• Made from aluminium powder coated black. (White available upon request).
• Images examples only.

• 1 x Aluminium Ranch Style Gate 1.25m H x 5.5m W with 500mm motor tail, powder coated black, fitted with 3 x 100mm wheels.
• 1 x End Receiver Bracket (MD8M)
• 1 x Bolt Down Gate Stop w/Rubber Bumper (MX04A)
• 2 x Posts 100x100x3.0mm x 2m powder coated black with caps

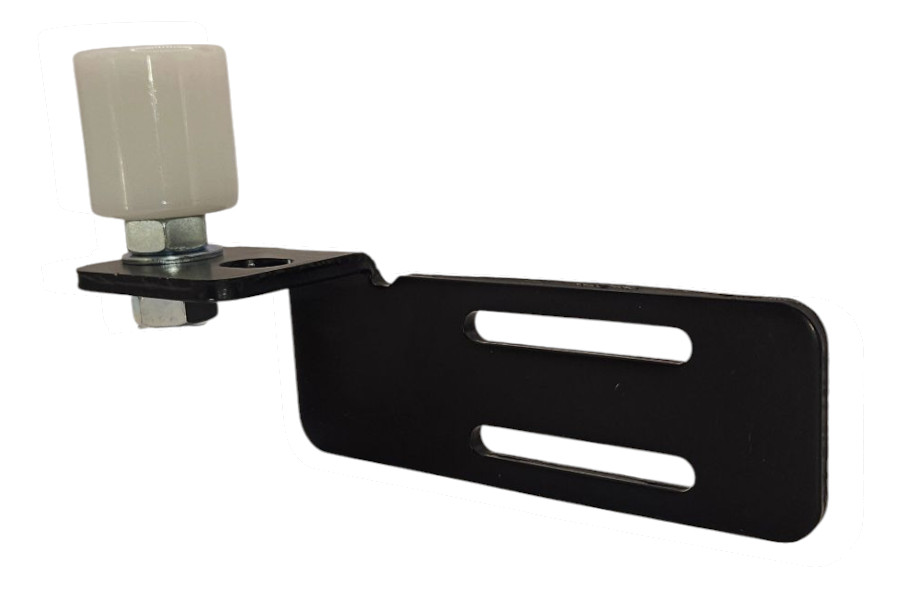

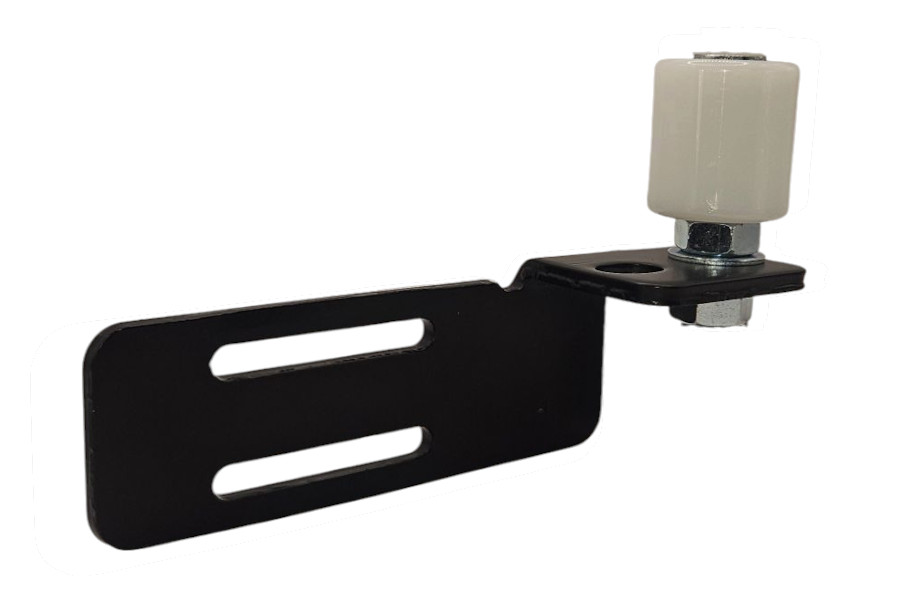

• 2 x Guide Roller Brackets Left and Right (1 x KJ42AL, 1 x KJ42AR)
• 2 x Bolt Down Track 5.8m (TRACK BOLT 5.8M)
• 1 x TMT Boxer 800 Sliding Gate Motor with 2 remotes (BOXER 800)
• 6 x TMT Gear Rack Nylon 1.0m (GEAR RACK 1.0 TMT)
• 1 x Photo Beam 180 degree rotational (PHOTO BEAM P5141)
• 1 x Keypad Hard Wired 2 button across (KEYPAD 2 BUTTON)
• Images examples only.

Gate

• Dimensions: 1250x5500mm + 500mm motor tail
• End & Centre Uprights: 100x100x3mm
• Bottom Rail: 100x100x3mm
• Cross Rails: 100x50x3mm
• Horizontal Rails: 100x50x3mm
• Material: Aluminium powder coated Black

TMT Boxer 800

• Maximum Gate Length: 8m
• Maximum Gate Weight: 800kg
• Gear Type: Worm Gear
• Power Supply: 110-240VAC (50-60Hz)
• Motor Power Supply: 24VDC
• Peak Thrust: 8000N
• Enclosure Dimensions L x W x H mm: 250 x 170 x 265
• Manual Release: Key

Photo Beam

• Working Voltage: 12-24VAC/DC or 2 x 1.5V AA Batteries
• Working Current: Transmitter ≤8mA, Receiver ≤40mA
• Wavelength: 940nm
• Angle of Opposite Emission: ≤±5°
• Receiver Range: ≥12m
• Internal Rotation System: Adjusted angle 0-180°
• Working Temperature: -20° - +60°C
• Relay Contact Loading Capacity: 1A/30VDC
• Waterproof Grade: IP54
• Product Size: 127x50x35mm
• Product Weight: 155g

Keypad 2 Button

• Material: Die-cast zinc alloy
• Capacity: 1010 cards/PIN
• Working Temperature: -20°C - 50°C
• Waterproof Rating: IP65
• DC Input: 12-24 VAC/VDC
• Standby Current: 80mA
• Working Current 110mA
• Frequency: 125KHz
• Dimension: 152x44x24mm
• Net Weight: 600g
• Effective Distance: 5cm
