Ball Bearing Hinge 35mm Adjustable w/Weld On Plate & Threaded Rod

Original price was: $38.50.Current price is: $32.73.

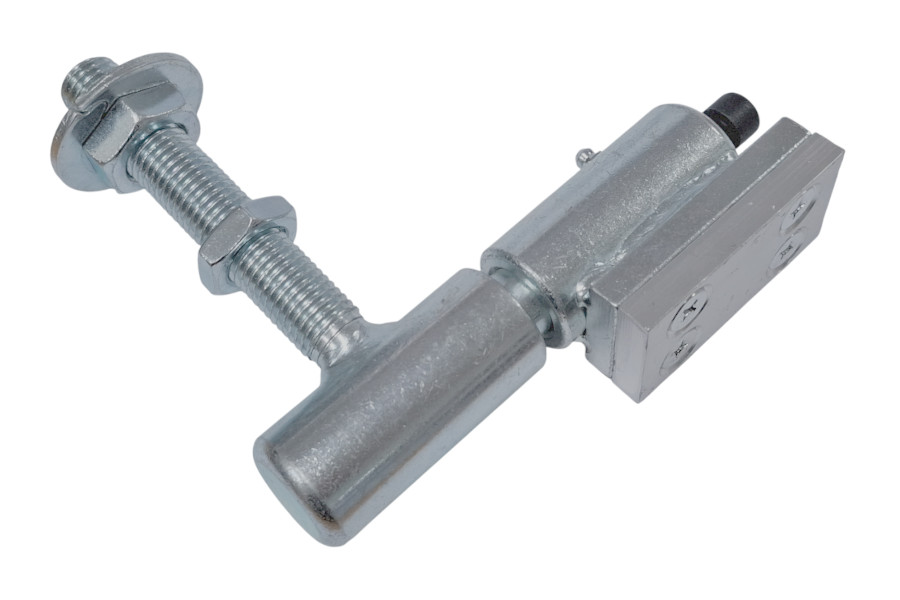

Weld on ball bearing hinge with removable aluminium plate and threaded rod, adjustable.

50 in stock

SKU: JL86A.01 Category:

Enquire about this product

    Additional information

    Weight 1.8 kg
    Dimensions 18 × 16 × 5 cm
    Type

    • Features

      • Ball bearing hinge 35mm w/ grease nipple.
      • Vertical adjustment with adjustment bolt
      • Threaded rod allows for horizontal adjustment
      • Weld on plate for post
      • Removable aluminium backing plate - allows you to weld hinge onto an aluminium gate frame and steel post. Aluminium plate can be removed for a steel gate.
      • Zinc finish
      • Price is per each

    • Includes

      • 1 x 35mm ball bearing hinge with weld on plate and threaded rod

    • Specifications

      • Hinge: 35mm diameter x 152L
      • Backing Plate: 80Lx38W (aluminium plate 80Lx40W)
      • Rod: 20mm diameter x 120L
      • Weld on Plate: 50mm diameter
