Additional information
| Weight | 1.8 kg |
|---|---|
| Dimensions | 18 × 16 × 5 cm |
| Type |

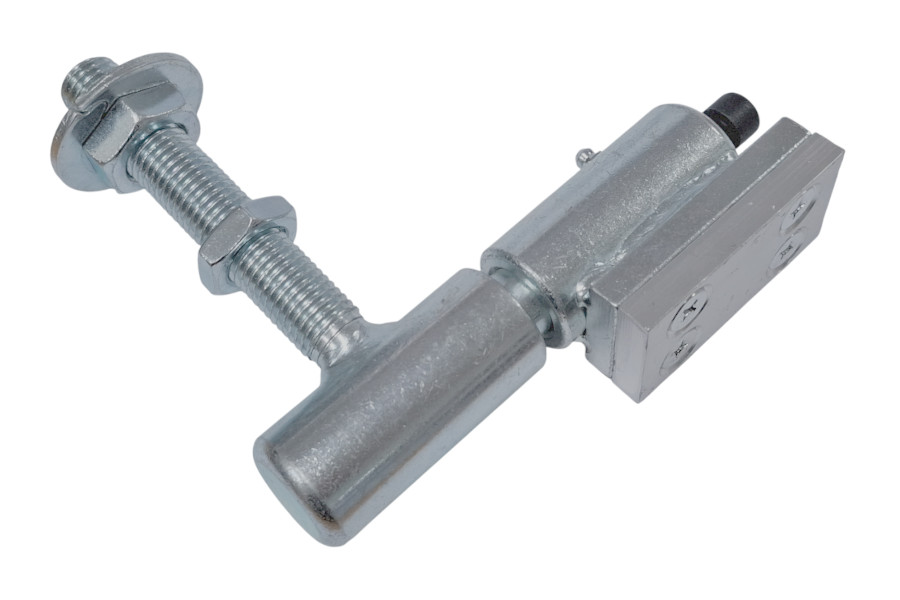

Ball Bearing Hinge 35mm Adjustable w/Weld On Plate & Threaded Rod
$38.50
Weld on ball bearing hinge with removable aluminium plate and threaded rod, adjustable.
25 in stock
-
Features
- Ball bearing hinge 35mm w/ grease nipple.
- Vertical adjustment with adjustment bolt
- Threaded rod allows for horizontal adjustment
- Weld on plate for post
- Removable aluminium backing plate - allows you to weld hinge onto an aluminium gate frame and steel post. Aluminium plate can be removed for a steel gate.
- Zinc finish
- Price is per each
-
Includes
- 1 x 35mm ball bearing hinge with weld on plate and threaded rod
-
Specifications
- Hinge: 35mm diameter x 152L
- Backing Plate: 80Lx38W (aluminium plate 80Lx40W)
- Rod: 20mm diameter x 120L
- Weld on Plate: 50mm diameter
